  Flexible Metal Conduit, Wire Over-Braided ( SM70001 )

Braided Flexible Metal Conduit

Over Braided Flexible Steel Conduit typically used for machinery cables and wirings protection.
As part of the Braided system range, this braided flexible metal conduit has
inherent fire protection
, high pull off strength and offers EMI screening.

*Galvanized steel helically wound with stainless steel wire over-braiding
*3/8"~6" trade size *EMI/RFI shielding *For heavy mechanical stress *High fatigue life
*Resists high temperature and hot metal splashes *All metallic constructions

Delikon overbraided flexible conduit systems protect vulnerable cabling on metal machining, welding or heavy plant

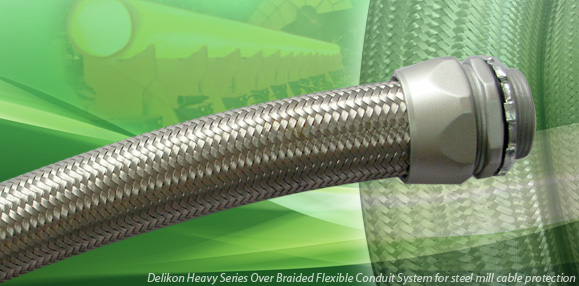

STEEL MILL cable protection heavy series over Braided Flexible metal Conduit heavy series FLEXIBLE SHEATH
  • MADE FROM TYPE YF-703 FLEXIBLE STEEL CONDUIT WITH WIRE OVER-BRAID:
    *Wire over-braiding provide more abrasion resistant and EMI/RFI shielding (EMC screening).
    *Durable and long life.
    *Inner core made from  galvanized steel strip.
    *Low fire hazard
    *Resists hot metal splashes and high temperature
    *Overbraided conduits are particularly suitable for installation in vibration environments.

  • Applications:
    Most suitable for use in  industrial environments and high temperatures, such as wiring welding machines and metal casting machines; Also  for demanding industrial environments where higher abrasion resistance or EMI screening are required.

  • Related Products:
    Flexible conduits with PVC covering and over-braiding.
    >>> Model YF-704
    water proof over braided flexible metal conduitWaterproof heavy series over Braided Flexible metal Conduit


    >>> Model AT-SL-BRAIDED
    braided small ID tubingOver Braided Small BORE Flexible Stainless Steel Conduit

    For automobile & industry control wiring harness

    >>> Model PBF
    Braided Nylon Conduit for Industry RobotsBraided
    Nylon Conduit
    system



    EMC screen braided flexible conduit for control panel
    Delikon has introduced a range of braided nylon corrugated conduit and metal fittings with EMC screening capacity.

    Stainless steel constructions
    Stainless Steel SMALL BORE
    Fiber Optics Flexible Conduit
    Small Bore Stainless Steel flexible conduit protects sensor and themal coupler wirings
    Liquid tight conduit with liquid tight connector
    Smooth PVC coated liquid-tight flexible steel conduit
    Delikon Liquid Tight Conduit Liquid Tight connector for Port Equipment

    Braided flexible conduit assembly
    Over-braided flexible conduit system with connectors



    Over braided interlocked Liquid tight metal Conduit and swivel fittings for CNC machine cable protection
    SM-701 over braided interlocked liquid tight metal conduit
    Model: YF-701
    For demanding industry cable protection


    TRIPLE layers stainless steel wires Braided Flexible Stainless Steel Conduit for burning equipment power and data cable protection
    Delikon Heavy Series Triple Layers Stainless Steel Wire Over Braided Flexible Stainless Steel ConduitModel: SC
    For igniters, flame detector, BMS sensor cable

    Delikon Triple Braided Stainless Steel Flexible Conduit System is designed for high temperature applications with a high level of thermal resistance, protecting the power and data cables of combustion equipment
    .

Stainless Steel liquid tight connector,Liquid Tight Stainless Steel conduit System for Oil, Chemical, Water, Food, Pharmaceutical, Brewing, Dairy and Soft Drinks industries

  • DELIKON STAINLESS STEEL LIQUID TIGHT CONNECTOR, STAINLESS STEEL LIQUID TIGHT CONDUIT SYSTEM
    COMPLETE Stainless Steel liquid tight connector,Liquid Tight Stainless Steel conduit System for Oil, Chemical, Water, Food, Pharmaceutical, Brewing, Dairy and Soft Drinks industries

Delikon stainless steel liquid tight conduit system for wastewater treatment plant cable protection


Delikon stainless steel liquid tight conduit system for wastewater treatment plant cable protection

Delikon Over Braided Flexible Metal Conduit protecting power and data cables and air & fluid lines in harsh industrial invironment

Heavy Series Over Braided Flexible Metal Conduit and Conduit Fittings protect iron mill cable. All METAL flexible conduit and ALL METAL connector for Plenum cable protectionOver braided flexible conduit provide excellent flexibility and good mechanical resistance together with good screening against electro-magnetic interference, most suitable for industrial applications where a high level of thermal resistance is required. It resists abrasion or hot metal splashes. Delikon All METAL flexible conduit and ALL METAL connector is also used for Plenum cable protection.
www.delikon.com
Braided flexible steel conduit,all metal construction

Braided Flexible Metal Conduit is widely used to counter mechanical stress and is highly flexible, and it is resistant against tensile stresses and transverse pressure. This conduit also offers excellent protection to cables against hot metal particles, and immunity from electromagnetic interference. Heavy Series Over Braided Flexible Metal Conduit resists hot metal splashes and is most suitable for steel industry electrical cable protection.

Type Trade Size I.D. (mm) O.D. (mm) Min Bending Radius (mm) Meter/Coil

Min.

Max.

Min.

Max.

SM-7000101 - 7.5 8.3 10.8 11.6 35  100
SM-7000102 1/4" 9.7 10.2 14.5 15.0 40  100
SM-7000103 3/8" 12.3 12.8 16.6 16.8 50 50
SM-7000104 1/2" 15.8 16.2 20.5 20.9 65 50
SM-7000106 3/4" 20.8 21.3 25.7 26.2 75 50
SM-7000110 1" 26.4 27.1 32.6 33.1 100 50
SM-7000112 1-1/4" 35.0 35.5 41.0 41.5 125 30
SM-7000114 1-1/2" 40.1 40.6 46.8 47.3 150 30
SM-7000120 2" 50.5 51.2 58.3 59.0 175 20
SM-7000124 2-1/2" 62.9 63.9 73.1 74.1 200  10
SM-7000130 3" 77.0 78.0 88.0 89.0 225  10
SM-7000140 4" 99.6 101.6 109.7 111.5 275  10
SM-7000150 5" 125.0 127.0 137.0 139.0 350 5
SM-7000160 6" 150.0 153.0 162.0 164.5 480 5

Heavy Series Over Braided Flexible Conduit for CNC EDM Machine Data and Power Cable

GALVANISED STEEL CONDUIT WITH STAINLESS STEEL OVERBRAIDING
Flexible metallic conduit, stainless steel wire braiding

FLEXIBLE STEEL CONDUIT WITH STAINLESS STEEL OVER BRAIDING, This conduit utilises strip wound steel conduit as a core, which is then over-braided with stainless steel wire. The wire over braid provides abrasion resistance and protects the core from mechanical damage. Over Braided Flexible Conduits provide high mechanical strength yet offer high flexibility. The conduit, at full extension, offers high tensile strength without elongation thus protecting cables from being over-tensioned or stretched. It will provide an enhanced level of EMI screening and a wide operating temperature. This heavy series over braided flexible metal conduit is excellent in protecting cables against hot swarfs in steel industry.
Delikon flexible conduit
Download the catalog page for DELIKON SM-70001 Over Braided Flexible Metal ConduitDownload the catalog page for DELIKON SM-70001 Over Braided Flexible Metal Conduit in PDF File format. Or have a look at other models of over braided flexible conduit and braided conduit fittings.
Delikon flexible conduit and fittings provides solid and reliable connection solutions for automation and Industry 4.0Delikon flexible conduit and fittings provides solid and reliable connection solutions for automation and Industry 4.0
Thanks to their very high level of shock and vibration resistance, Delikon heavy series over braided flexible conduit and fittings ensure reliable operation of your cables even under the most challenging conditions, whether in the drives of assembly machines, production lines, machine tools, packaging machines, or industry and process automation.
Delikon Braided flexible Conduit with MS Plug fitting for automation cable

Electrical flexible conduit
The fourth industrial revolution is developing into a permanent technical evolution. Delikon heavy series over braided flexible conduit and fittings are already here to protect the cabinets and system cabling. In both control cabinets and system cabling, the key factor in achieving high availability of your electronic system is secure and failsafe connection of all components. Therefore, you need Delikon as a reliable single-source partner who can deliver modern, efficient and well constructed flexible conduit system to protect your control cabinets and system cabling.
Delikon Heavy Series Over Braided Flexible Conduit,Fittings protect Industry 4.0 power, signal and data cables

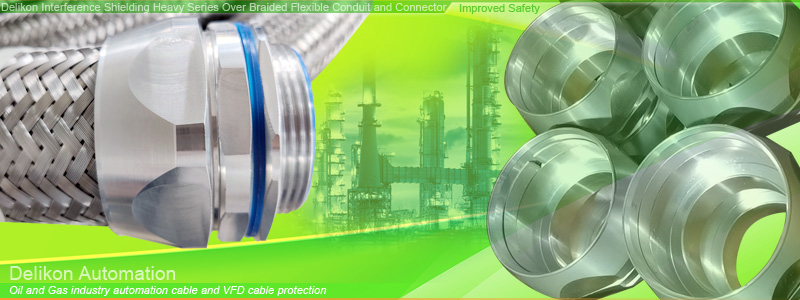

Delikon Automation Cable Management System For Oil and Gas Control Systems
Delikon EMI shielding Heavy Series Over Braided Flexible Conduit and Braided Conduit Fittings are designed for industry control panels wirings, PLC wirings, Motion Control wiring, power and data cable protection.
In such a dynamic industry, oil and gas companies today are looking for ways to maximize production while minimizing equipment and aotmation control system maintenance down time and costs. Delikon heavy series over braided flexible conduit and fittings system offers protection as well as emi shielding for electrical and data cables of control system for the continuous production, processing, transportation and refining of oil and gas products. Poor wiring or connections will result in poor machine functionality and or damage. When evaluating the need for control wiring installation or upgrades, donot forgot to choose Delikon Automation Cable Management System that can provide qualified protection and shielding, keeping the interference from signal noise to a minimum.
In such a dynamic industry, oil and gas companies today are looking for ways to maximize production while minimizing equipment and aotmation control system maintenance down time and costs. Delikon heavy series over braided flexible conduit and fittings system offers protection as well as emi shielding for electrical and data cables of control system for the continuous production, processing, transportation and refining of oil and gas products. Poor wiring or connections will result in poor machine functionality and or damage. When evaluating the need for control wiring installation or upgrades, donot forget to choose Delikon Automation Cable Management System that can provide qualified protection and shielding, keeping the interference from signal noise to a minimum.
delikon.com
Heavy Series Over Braided Flexible Conduit and Conduit Fittings system specially designed for cables protections in steel mills, glass works and electric furnaces, resists hot metal splashes. Over braided flexible conduit also provides exceptional screening and shielding effectiveness from electromagnetic and radio frequency interference. Emi shield over Braided Flexible Conduit for Variable frequency drive cable (VFD)
*All sizes and dimensions listed above are subject to manufacturing tolerances. Flexible Metal Conduit for Heavy Mechanical Stress
*Standard Packaging: PVC woven sheet wrapped coil. Other custom packaging methods or of longer length is also possible upon request and our approval.
Also Refer To:
  Over Braided Liquid Tight Conduit

Delikon Heavy Series Over Braided Flexible Conduit and Fittings are here to provide additional mechanical protection, hot metal splash resistance, as well as EMI sheilding to Sensors and instrumentation Cables.






Delikon Heavy Series Conduit Connector
Delikon Heavy Series Over Braided Flexible Conduit and Fittings Provides Perfect Cable Protection Solutions for the Steel Mill Industry Automation

A host of sensors can be used to automate steel mills and improve overall productivity and product quality. Delikon Heavy Series Over Braided Flexible Conduit and Fittings are here to provide additional mechanical protection, hot metal splash resistance, as well as EMI sheilding to Sensors and instrumentation Cables. New manufacturing plants and retrofits in the steel-making industry present growth opportunities for Delikon flexible conduit and fittings systems. Delikon has the right flexible conduit system to protect temperature and vibration sensors cables in hot rolling processes and other continuous casting, rolling, and final endproduct manufacturing, as well as flexible conduit and fittings for other types of sensors and analyzers.
Delikon Heavy Series Over Braided Flexible Conduit and Fittings Provides Perfect Cable Protection Solutions for the Steel Mill Industry Automation
The harsh environment of steel mills demands tough cable conduit systems with reliable performance. Delikon Heavy Series Over Braided Flexible Conduit and Fittings offer a number of benefits that make them the ideal choice for the harsh, demanding applications in modern steel millsReplacing cables costs time and money, and loss of data feedback or power puts product quality in jeopardy. Delikon Heavy Series Over Braided Flexible Conduit and Fittings offer a number of benefits that make them the ideal choice for the harsh, demanding applications in modern steel mills. Delikon flexible conduit systems are available in many different constructions including PVC coated, thermal rubber coated, and over braided types.To provide additional protection in harsh environments, Heavy Series Over Braided Flexible Conduit is available that can withstand hot metal splash and provide emi shielding to the data and power cables. Delikon flexible conduit systems are easy to install.
www.delikon.com

Over Braided Flexible Steel Conduits for heavy industryFor Industry Automation Connectors and fittings for braided flexible conduitCONNECTORS & FITTINGS FOR
BRAIDED FLEXIBLE CONDUIT
Suitable connectors
YABS, All metal connector for high temperature Aluminum connectors (FIXED or SWIVEL) Aluminum connectors (BLACK) Aluminum connectors (RED) Straight (US style) 90 degrees (US style) straight (metallic) 90 degrees (metallic) 45 degrees (metallic) swage fittings Stainless steel combination (internal thread) combination (set-screw)
Y Y Y Y Y Y Y Y Y Y Y Y Y
