EMC
SCREENING PERFORMANCE
Electrical Water Proof
OverBraided Flexible metal Conduit, emc screening
Over braided flexible steel conduit, Liquid Resistant, EMI shielding
Clean data transmission in a noisy environment is an ever increasing
requirement on todays crowded factory floors. Braided flexible steel
conduit systems provide excellent EMI and RFI shielding, as well as
mechanical protection, resulting in improved data transmission for
factory automations.
OverBRAIDing Flexible metal conduit, water proof, Emc screening
*Resists high temperature and hot metal splashes
Strip-wound flexible metallic conduit hooked
profile,PVC sheathing,galvanized steel wire braiding
Constructions & features:
1)The core made of galvanized steel strips, helically wound
with PVC covering. Providing good mechanical protection and
water tightness.
2) Metal wire over braiding provides increased pressure rating
(explosion proof), abrasion resistant and EMI shielding.
Galvanised Steel Conduit with PVC
Covering, Stainless Steel overbraid
This water proof braided metal
conduit provides high mechanical strength yet offer high
flexibility. The conduit, at full extension, offers high tensile
strength without elongation thus protecting cables from being
over-tensioned or stretched. It is used for applications requiring
high mechanical strength and flexibility and also a degree of
waterproofing. The overbraid will protect the PVC sheath from damage
caused by hot swarf or abrasion.
Suitable for:
1)Industrial environments, especially suitable for
protections of machineries cables and wiring in wet and
hazardous locations.
2)Tele-communications equipments. EMI shielding of data carrying cables.
3)Computer room wirings.
4)Public electrical facilities and installations.
1) Electromagnetic Interference (EMI) considerations:
*computers rooms *telecommunications * control systems
2) Abrasion resistance considerations:
*railway rolling stock *heavy duty industrial applications
3) Hot metal splashes resistance considerations:
*steel mills *petrochemical plants, Chemicals, Heavy Industrial
wirings
4) Mechanical integrity:
*security/CCTV *anti-vandal applications

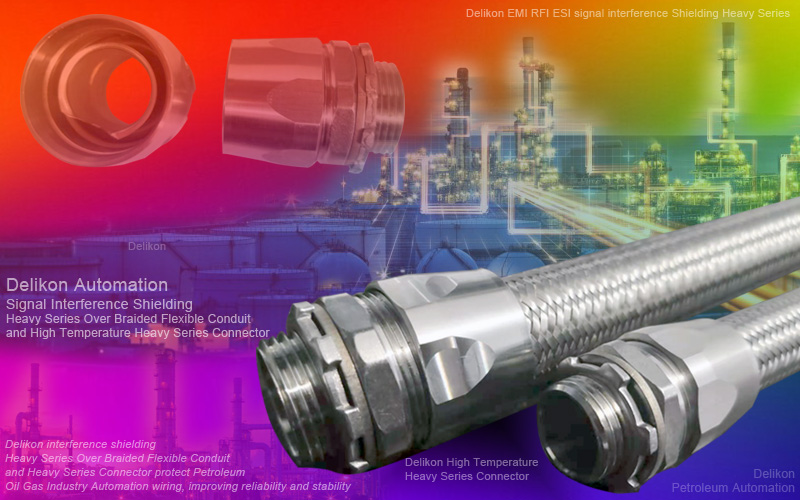

Flexible metal braided conduit
(extra flexible, metallic,PVC coated, with stainless steel overbraid)
Vacuum jacketed steel conduit with stainless steel overbraid
Flexible metal braided conduit is suitable for use in both static
applications where a tight bend radius is needed and in dynamic use
such as machining centers and robotics,
particularly where external heat source is a problem. Can be used in
most industrial and
commercial environments.
