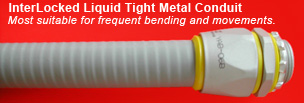

Aluminum Liquid Tight Connectors For Liquidtight Conduits liquidtight connector liquidtight connector Straight connector for use with metallic and non-metallic "Type B" liquid tight conduit. flexible conduit flexible conduit
* Liquidtight, Raintight, OilTight * Suitable for wet locations and outdoor applications *Fixed & Swivel Types
 |
 |
| liquidtight connector |
 |
|
|

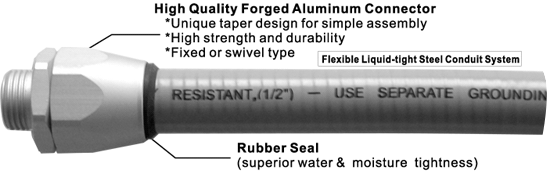

This new line of liquid tight connectors are made of high-quality forged aluminum for
superior strength and durability. These unique configurations work perfectly with our whole range of flexible conduits and hoses,
especially suitable for liquidtight conduit. All forged liquidtight connectors feature: |
 |
Fixed Type: YAB |
 |
|
This fitting can be inserted
|
||
 |
Catalog No. |
Nominal Size |
Connector Dimension (mm) |
Thread |
Packing Pcs/Ctn |
||||
|
I.D. |
A |
B |
C |
D |
|||||
|
YAB-03B |
3/8" |
10.5 |
20.3 |
24.0 |
11.0 |
41.0 |
PF 1/2" |
50 |
|
|
YAB-04B |
1/2" |
14.0 |
20.3 |
27.0 |
11.0 |
47.0 |
PF 1/2" |
50 |
|
|
YAB-06B |
3/4" |
17.7 |
25.7 |
34.0 |
13.0 |
54.0 |
PF 3/4" |
50 |
|
|
YAB-10B |
1" |
24.0 |
32.0 |
42.0 |
14.0 |
61.0 |
PF 1" |
25 |
|
|
YAB-12B |
1-1/4" |
33.0 |
41.0 |
52.0 |
16.0 |
68.0 |
PF 1-1/4" |
20 |
|
|
YAB-14B |
1-1/2" |
38.0 |
46.5 |
59.0 |
20.0 |
78.0 |
PF 1-1/2" |
15 |
|
|
YAB-20B |
2" |
49.0 |
59.0 |
71.0 |
20.0 |
83.0 |
PF 2" |
10 |
|
 |
Swivel
Type: YABR |
 |
|
The external thread swivels about the
main body.
|
||
 |
Catalog No. |
Nominal Size |
Connector Dimension (mm) |
Thread |
Packing Pcs/Ctn |
||||
|
I.D. |
A |
B |
C |
D |
|||||
|
YABR-03B |
3/8" |
10.5 |
20.3 |
24.0 |
11.0 |
56.0 |
PF 1/2" |
50 |
|
|
YABR-04B |
1/2" |
14.0 |
20.3 |
27.0 |
11.0 |
62.0 |
PF 1/2" |
50 |
|
|
YABR-06B |
3/4" |
17.7 |
25.7 |
34.0 |
13.0 |
69.0 |
PF 3/4" |
50 |
|
|
YABR-10B |
1" |
24.0 |
32.0 |
42.0 |
14.0 |
78.0 |
PF 1" |
25 |
|
|
YABR-12B |
1-1/4" |
33.0 |
41.0 |
52.0 |
16.0 |
88.0 |
PF 1-1/4" |
20 |
|
|
YABR-14B |
1-1/2" |
38.0 |
46.5 |
59.0 |
20.0 |
100.0 |
PF 1-1/2" |
15 |
|
|
YABR-20B |
2" |
49.0 |
59.0 |
71.0 |
20.0 |
108.0 |
PF 2" |
10 |
|
|
Connector Surface finish:
Anodized
(Corrosion and abrasion resistant, suitable
for industry or outdoor applications.) |
| Typical Applications for High Qulaity Aluminum Connectors - For use in Braided Flexible Conduit System | |
 |
|
 |
Braided Flexible Conduit System is widely used to counter mechanical stress and is highly flexible, and it is resistant against tensile stresses and transverse pressure. Braided flexible conduit also offers excellent protection against hot metal particles, and immunity from electromagnetic interference. Braided flexible conduits are most suitable for use in Hazardous Locations, industrial environments and high temperatures wiring applications. The high quality aluminum fittings and connectors are specifically designed to maintain the flexible braided conduit system integrity. |
| Typical Applications for High Qulaity Aluminum Connectors - For use in Liquid Tight Conduit System | |
|
|
|
|
|
Liquidtight Metal conduit is ideal when used with liquid-tight fittings for applications where a high degree of liquid tightness is required. This product is suitable for a number of general purpose wiring applications and ideal for environments with lots of water, coolant, and vibrations such as machine tool workshops. |
|
|
|
|
|
