Braided Flexible Corrugated Nylon Conduit ( PBF )

	Wire Over-Braided Flexible Corrugated Nylon Conduit ( PBF ) flexible Conduit

	*For industry electrical wirings, such as PLC control circuits, robotics,* braided nylon conduit machine tools, and factory automation braided nylon conduit braided nylon conduit Corrugated Nylon core Metal wire over-braided Nylon flexible Conduit Nylon flexible Conduit 1/4"~2" trade size EMI shielding Liquid-tight Light weight & very flexible

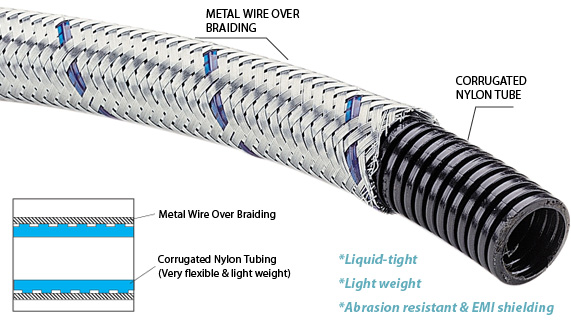

MADE FROM TYPE PB NYLON CORRUGATED CONDUIT WITH WIRE OVER-BRAID:
*Wire over-braiding provide more abrasion resistant and EMI shielding.
*Explosion proof.
*Durable and high fatigue life
*Inner core made from corrugated Nylon tube for more flexibility.
*Highly resistant to solvents and oils

Applications:
Appliances, automotive wire & cable sleeving, industrial equipments,
medical devices, machineries, wire conduits
Related Products:
Oil Resistant System
>>> Model WNS

>>> Model YF-704
BRAIDED Flexible metallic conduit, water proof, EMI shielding

>>> Model SM-70001
Flexible metal conduit for heavy mechanical stress

Type	Trade Size	I.D. (mm)		O.D. (mm)		Meter/Coil
Type	Trade Size	Min.	Max.	Min.	Max.	Meter/Coil
PBF-01	1/4"	6.4	6.6	10.7	11.0	100
PBF-02	5/16"	9.7	10.0	13.7	14.0	100
PBF-03	3/8"	11.7	12.0	16.5	16.8	100
PBF-04	1/2"	16.5	16.7	21.8	22.2	100
PBF-06	3/4"	21.5	22.0	29.0	29.5	100
PBF-10	1"	27.7	28.2	34.5	35.0	50
PBF-12	1-1/4"	35.5	36.0	42.2	42.8	50
PBF-20	2"	46.4	47	54.8	55.5	50

Braided corrugated nylon conduit

Flexible Corrugated Nylon Conduit with Steel Overbraid,
PBF conduit is manufactured from standard weight corrugated nylon conduit, which offers superior mechanical strength as well as high radiation and chemical protection often in high temperatures. The steel overbraid provides a high level of EMI screening for data cables, abrasion resistance and protects the NYLON core from mechanical damage. The conduit, at full extension, offers high tensile strength without elongation.

*All sizes and dimensions listed above are subject to manufacturing tolerances. nylon flexible Conduit
*Standard Packaging: Shrink wrapped coil. Other custom packaging methods or of longer length is also possible upon request and our approval. Braided Flexible Conduit systems for vehicle wiring harnesses

Over Braided Flexible Steel Conduits for heavy industry

for more mechanical strength, increased EMI shielding
