Delikon Military Circular Connector Backshell, Conduit Adapter, Transitions Fittings
Flexible Conduit Adapter For Military Connector
, MS Fittings, Circular Connector ( MAS )
Delikon produces a whole range of MS Plug Adapters, Military Circular Connector Backshell, and Transitions Fittings for connecting a military connector, MS Connector or circular connector to a flexible conduit for industry cable protection. In particular , the Heavy Series Over Braided Flexible Conduit with MS Adapter is most suitable for CNC machines wiring harness, and industry control, automation cables protection. Delikon offers excellent flexible conduit cable protection solutions for industry wiring requirements. Heavy Series  High Temperature



Conduit
Adapter
Backshell


UNEF
Fitings

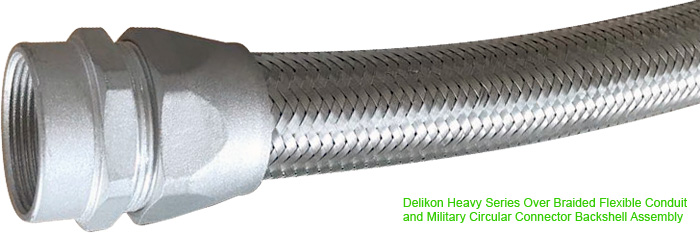

Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Military Circular Connector Backshell Assembly

YF-705
YF-705 braided liquid tight conduit

Clean data transmission in a noisy environment is an ever increasing requirement on today's crowded factory floors. Over Braided flexible conduit systems with metal adapter for MS connector provide excellent EMI and RFI shielding, as well as mechanical protection, resulting in improved data transmission for factory automations.
These flexible conduit systems can be used for protecting many different CNC machines cables, including servo motor cables, control cables, ribbon cables, fiber optic cables and more.

Flexible Conduit Adapter Backshell Connecting Flexible Conduit to Military Connector,MS Fittings,Circular Connector

SM-701
SM-701 braided interlocked liquid tight conduit

YF-704
YF-704 waterproof braided flexible conduit

PBF
PBF braided nylon flexible conduit

WNS/ORC
WNS oil resistant braided rubber flexible conduit

SM70001
SM-70001 Braided Flexible Metal Conduit



Delikon MAS Series Flexible Conduit Adapter Backshell
The MAS Series Flexible Conduit Adapter Backshell is for use with Delikon Flexible Conduits.
Delikon MAS Series Flexible Conduit Adapter Backshell,Military Circular Connector Backshell,Transitions Fittings
Adapter
Model
For Conduit
Trade Size
For MS Connector
Shell Size
MS3057
Part No.
Adapter
ID (mm)
Thread
in Inches
MAS-0304 3/8" 10SL, 12S 4A 10.7 5/8" - 24 UNEF
MAS-0306 3/8" 14S 6A 10.7 3/4" - 20 UNEF
MAS-0308 3/8" 16S, 16 8A 10.7 7/8" - 20 UNEF
MAS-0310 3/8" 18 10A 10.7 1" - 20 UNEF
MAS-0312 3/8" 20, 22 12A 10.7 1-3/16" - 18 UNEF
MAS-0408 1/2" 16S, 16 8A 14.5 7/8" - 20 UNEF
MAS-0410 1/2" 18 10A 14.5 1" - 20 UNEF
MAS-0412 1/2" 20, 22 12A 14.5 1-3/16" - 18 UNEF
MAS-0416 1/2" 24, 28 16A 14.5 1-7/16" - 18 UNEF
MAS-0612 3/4" 20, 22 12A 19.3 1-3/16" - 18 UNEF
MAS-0616 3/4" 24, 28 16A 19.3 1-7/16"- 18 UNEF
MAS-1016 1" 24, 28 16A 24.4 1-7/16"- 18 UNEF
MAS-1220 1-1/4" 32 20A 33.4 1-3/4" - 18 UNEF
MAS-1424 1-1/2" 36 24A 38.0 2" - 18 UNEF
Delikon Military Circular Connector Backshell, Conduit Adapter, is designed to connect a cylindrical connector to flexible conduit. Together with Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector, this over braided flexible conduit assembly provides reliable protection to the cables connecting to MilitaryConnector and is widely used for the automotive, robotics, machine tool and welding industries, as well as industry automation cable protection and numerous other commercial applications from heavy equipment to ECG monitoring cables.
Conduit Adaptor

Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit
and Military Circular Connector Backshell and Heavy Series Connector protect CNC machine power cables, servo cables, encoder cables, and communications cables.

* Reliable conduit termination

* 360 degrees screen termination

*Straight, 45 degrees and 90 degrees
Delikon Heavy Series Over Braided Flexible Conduit with MS Adapter, Military Circular Connector Backshell protects Servo Motor Cable. Delikon continuous casting machine automation cable protection Heavy Series Over Braided Flexible Conduit system.
Conduit Adapter Backshell Connecting Flexible Conduit to Military Connector * MAS conduit adapter can be supplied as individual backshells or as complete conduit system
* Adapter sizes or threads could be produced as per customers requirements.
delikon.com
Download the catalog page for DELIKON MAS Military Circular Connector Backshell in PDF File format. Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Military Circular Connector Backshell and Connector protect CNC machine cables. Download the catalog page for DELIKON MAS Military Circular Connector Backshell,Conduit Adapter,Transitions Fittings

Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit with Military Circular Connector Backshells, Adapters and Transitions Fittings
Delikon Cable Protection Flexible Conduit with Conduit Adapter Backshell

Each year, as military technology progresses, new uses for military connectors are born. They are often used in aerospace, industrial, marine, and even automotive commercial applications. Some of the standard environments to which military connectors are subject include wide temperatures ranges, severe vibration, severe shock, corrosion, fuels, hydraulic fluids, sand, dust, ice, bending moments, moisture, water emersion, high altitude, humidity, vacuum, space, dissimilar metal electrolysis, lightning, electro magnetic interference EMI, radio frequency interference RFI, electro magnetic pulse EMP, and many more.
Delikon UNEF Backshell for industry automation cable protection

The need to provide adequate protection to the cables connecting to Military Connector becomes paramount. Del
ikon backshell design is concerned with the rear end or wire end of the connector.
Delikon Conduit Adapter backshells are designed to attach onto the rear end or wire end of the military connector, connecting Delikon Flexible Conduit to the Military connector shell rear end geometry. With this design, the cables are fully protected by Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit systems. Delikon MAS Series Conduit Adapter Backshells are offered in complete range of SHELL SIZES. Delikon Backshells are available in aluminum, stainless steel, brass, and steel, and come in various finishes. Different designs (i.e. straight, 45, and 90 degrees) are available and customization is always an option.

Delikon Military Circular Connector Backshell is designed to connect a cylindrical connector to flexible conduit.

Delikon UNEF Backshell

Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Military Circular Connector Backshell and Heavy Series Connector protect CNC machine power cables, servo cables, encoder cables, and communications cables. Delikon Conduit Adapter backshells are designed to attach onto the rear end or wire end of the military connector, connecting Delikon Flexible Conduit to the Military connector shell rear end geometry. With this design, the cables are fully protected by Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit systems. Delikon MAS Series Conduit Adapter Backshells are offered in complete range of SHELL SIZES.
Delikon Heavy Series Over Braided Flexible Conduit system has been designed to provide a series of fully screened, Delikon Heavy Series Connector for over braided flexbile conduitmechanical protection cable assembly systems for commercial, mass transportation, test equipment and aerospace, defense applications. The heavy series over braided flexible conduit systems can be supplied as component parts or as an assembled conduit to predetermined length and form, We offer a flexible service to enable a conduit system to be designed and built to the requirements of our customers.
www.delikon.com



Petrochemical, Offshore & Heavy industrial wiring flexible conduit and fittings Petrochemical cable management over braided flexible conduit system
Delikon brings great experience and flexible conduits systems to Heavy Industry & Offshore Applications. These applications require the emphasis on safety, security, and longevity. It also requires ease of maintenance.
These metallic liquid tight and waterproof conduits are used to protect the vital network of cables that transfer information and electricity. They combines the value-added benefits of durability, chemical resistance, waterproof connections, ease of installation all in one effective system.
Over Braided Interlocked Liquid Tight Conduit and Fittings for Machinery Wiring
Over braided flexible conduit system for industry automationBraided Flexible Metal Conduit System for heavy industry cables protection
