Over Braided Flexible Metal Conduit For High Temperature Wiring       FLEXIBLE EMC SCREENING  Offshore Applications

Inherently low fire hazard (ILFH),  Braided Flexible Metal Conduit is widely used to counter mechanical stress and is highly flexible, and it is resistant against tensile stresses and transverse pressure. This braided conduit also offers excellent protection to cables against hot metal particles, and immunity from electromagnetic interference. Most suitable for use in Hazardous Locations, industrial environments and high temperatures.

Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector protect automotive and steel industry automation Ethernet cable, UTP unshielded twisted-pair cable, PLC cable, power and data cable

Industrial applications such as the automotive or steel factory floor are typically electrically noisy environments. Switching heavy loads, inductive heaters, large transformers, generators, and robotics can all present high levels of both conducted and radiated EMI. There are thousands of applications where the EMI RFI in the location is so high it causes problems with the Ethernet link. Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector effectively isolate wires from the environment through which the cable runs, combating the effects of EMI. The heavy series metal connector clamp the over braiding tightly forming electrical contact around the entire periphery of the shield, providing a
360 degrees SHIELD termination. The complete Delikon heavy series braided flexible conduit and connector assembly provides a low impedance path to ground and delivers a relatively thick and exceptionally conductive boundary around the cables that reflects and absorbs disruptive signals.
Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector protect automotive and steel industry automation Ethernet cable, UTP unshielded twisted-pair cable, PLC cable and power and data cable
Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector solutions for the
automotive industry cable protection


With Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector automation cable protection solutions for automotive manufacturing processes, you will achieve higher and more consistent productivity, without compromising on flexibility. From the outset, Delikon has partnered with the automotive industry to develop innovative and high performance cable protection flexible conduit system solutions for automotive production processes. Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector help automotive industry reduce down time due to power or data cable failure and achieve performance, availability and profitability for all manufacturing processes. Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector protect automation cables in Body shop, Paint shop, and Final assembly.

Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector protect spot welders and stud welding machines cables, industry automation cables and motion control cables from welding sparks and spattered hot metal pieces. Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector provides mechanical protection as well as EMI shielding to communications cables linking all computers and controls in Assembly and Paint shop. Delikon Over Braided Flexible Polyamide Corrugated Conduit and Heavy Series Metal Conduit Fittings are widely used to protect industrial robots cables.
Delikon Heavy Series Over Braided Flexible Conduit,Fittings protect Industry 4.0 power, signal and data cables
Delikon EMI Shielding Heavy Series Over Braided Flexible Metal Conduit Heavy Series Over Braided Flexible Metal Conduit For High Temperature Wiring.

Inherently low fire hazard (ILFH), Heavy Series Over Braided Flexible Metal Conduit is widely used to counter mechanical stress and is highly flexible, and it is resistant against tensile stresses and transverse pressure. This braided conduit also offers excellent protection to cables against hot metal particles, and immunity from electromagnetic interference EMI. Heavy Series Over Braided Flexible Metal Conduit is most suitable for use in Industry automation applications, industrial environments and high temperatures.
Type Trade Size I.D. (mm) O.D. (mm) Min Bending Radius (mm) Meter/Coil

Min.

Max.

Min.

Max.

SM-7000100 5mm 4.8 5.3 7.8 8.3 30  100
SM-7000101 - 7.5 8.3 10.8 11.6 35  100
SM-7000102 1/4" 9.7 10.2 14.5 15.0 40  100
SM-7000103 3/8" 12.3 12.8 16.6 16.8 50 50
SM-7000104 1/2" 15.8 16.2 22.5 22.9 65 50
SM-7000106 3/4" 20.8 21.3 28.4 29.1 75 50
SM-7000110 1" 26.4 27.2 32.6 33.4 100 50
SM-7000112 1-1/4" 35.0 35.9 41.0 41.5 125 30
SM-7000114 1-1/2" 40.1 40.6 46.8 47.3 150 30
SM-7000120 2" 50.5 51.2 58.3 59.0 175 20
SM-7000124 2-1/2" 62.9 63.9 73.1 74.1 200  10
SM-7000130 3" 77.0 78.0 88.0 89.0 225  10
SM-7000140 4" 99.6 101.6 109.7 111.5 275  10
SM-7000150 5" 125.0 127.0 137.0 139.0 350 5
SM-7000160 6" 150.0 153.0 162.0 164.5 480 5
Heavy Series Over Braided Flexible Conduit with MS Plug Adapter for Servo Motor Cable
Heavy Series Over Braided Flexible Conduit with MS Plug Adapter for Servo Motor Cable and CNC machine

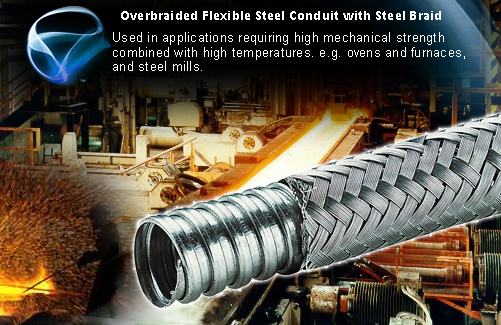

Over braided flexible steel conduit, abrasion resistant is used in applications requiring high mechanical strength combined with high temperatures. e.g. ovens and furnaces, petrochemical and steel mills. OVER BRAIDED FLEXIBLE CONDUIT flexible sheath fittings for bank vault cable protection





Over braided flexible conduits provide high mechanical strength yet offer high flexibility. The flexible metallic conduit, at full extension, offers high tensile strength without elongation thus protecting cables from being over-tensioned or stretched. Braided flexible conduits also provide a high level of
EMI screening for data cables. Braided metal conduit is excellent in protecting cables against metal particles and against vandalism or rodents.


Delikon industry control heavy series over braided flexible conduit and connector for automation and process control wiring applications
Flexible conduit system for industry control and robot.
Nylon conduit system protects sensitive cablingHeavy Series Over Braided Flexible Conduit and Heavy Series Flexible Metal Fittings For industry automation cable protection







Hea
vy Series Over Braided Flexible Conduit and Heavy Series Flexible Metal Fittings For industry automation cable protection


       Delikon Heavy Series Over Braided Flexible Conduit and Fittings offer a number of benefits that make them the ideal choice for the harsh, demanding applications in chemical industry
Heavy series metal connector clamp the over braiding tightly providing a 360 degrees SHIELD termination.

Over braided Flexible Steel Conduit For High Temperature WiringDelikon Military Circular Connector Backshell

Delikon Military Circular Connector Backshell

Conduit Adapter

Conduit
Adapter

All 3 models of braided flexible steel conduits  Heavy Series
Download the catalog page for DELIKON SM-70001 Over Braided Flexible Metal ConduitDownload the catalog page for DELIKON SM-70001 Over Braided Flexible Metal Conduit in PDF File format. Or have a look at other models of over braided flexible conduit and braided conduit fittings.
Delikon Heavy Series Over Braided Flexible Conduit and High Temperature Heavy Series Connector protect cables from being adversely affected by EMI RFI ESI signal interference and acting as barriers to block unwanted electromagnetic signals from escaping. Delikon signal interference shielding Heavy Series Over Braided Flexible Conduit and High Temperature Heavy Series Connector for steel mill, Refineries and Petrochemical industry, utility sector, automotive industry automation cable protection
Delikon signal interference shielding Heavy Series Over Braided Flexible Conduit and High Temperature Heavy Series Connector
Delikon High Temperature Heavy Series Stainless Steel Connector produced from solid stainless steel rods, offers the best combination of strength, oxidation resistance and elevated temperature properties for long service, high temperature industrial applications and together with heavy series over braided flexible conduit has been successfully employed for application in the utility, petrochemical, refinery, automotive, steel casting, foundry and forging industry.The growing complexity of today s communications and control systems, coupled with the increased distances signal and control communications are required to travel, have exponentially increased electrical interference noise related failures. Shielding of cables has become as critical as any other design element. Delikon Heavy Series Over Braided Flexible Conduit and High Temperature Heavy Series Connector provide cables with efficient protection from being adversely affected by EMI RFI ESI signal interference as well as acting as barriers to block unwanted electromagnetic signals from escaping and affecting its electronic surroundings.

To combat the effects of signal interference, Delikon Heavy Series Over Braided Flexible Conduit and High Temperature Heavy Series Connector surrounds the power or signal carrying conductors of the cable and protects it by reflecting signal interference as well as picking up noise and conducting it to ground. Delikon Heavy Series Over Braided Flexible Conduit and High Temperature Heavy Series Connector also provides protection against mechanical stress, hot metal sparks and slag.

Delikon signal interference shielding Heavy Series Over Braided Flexible Conduit and High Temperature Heavy Series Connector for
steel mill, Refineries and Petrochemical industry, utility sector, automotive industry automation cable protection
Delikon Emi Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector, wiring solutions for metallurgical process control, metal manufacturing automation,extrusion press cable protection heavy series over braided conduit
Delikon Emi Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector, wiring solutions for metallurgical process control, metal manufacturing automation

Delikon ranks as the worlds leading provider of emi shielding heavy series over braided flexible conduit and heavy series connector cable protection systems for metal industry. We offer a dedicated special line of heavy series over braided flexible conduit and heavy series fittings used in all segments of metallurgy as a complete automation wiring solution from yard to melt shop, hot and cold rolling, and processing lines, enabling our customers to optimize production while ensuring quality, minimizing electrical cables emi interferences, damage, wear and enhancing reliability.
Delikon emi shielding heavy series over braided flexible conduit and heavy series connector are also widely used in protecting cables in ALUMINIUM AND NON-FERROUS METALS Scrap processing, melting, casting, rolling, drawing, finishing, processing and extrusion plants and Extrusion presses for non ferrous metals.
Our offering
* Over Braided Flexible Corrugated Nylon Conduit
* Oil Resistant Over Braided Flexible Rubber Conduit
* Heavy Series Over Braided Flexible Metal Conduit
* Water Proof Heavy Series Over Braided Flexible Metal Conduit
* Liquid Tight Heavy Series Over Braided Flexible Metal Conduit
* Heavy Series Triple Braided Flexible Stainless Steel Conduit
* EMI Termination Heavy Series Connector, Conduit Fittings for braided conduits


Delikon provides a wide variety of emi shielding heavy series over braided flexible conduit and heavy series connectors for mechanical protection as well as emi shielding of power and data cables of MES, Intelligence & optimization devices, safety, power and process control instrumentation and equipment, power controller, Drives and PLC, Analyzers, and Robot-based automation.

Delikon EMI Termination Heavy Series Connector, Heavy Series Conduit Fittings for braided conduitsDelikon delivers an extensive flexible cable management package for cables coming in and out of switching facility control cabinets. Besides protecting wirings of operating stations for the process control system, Delikon emi shielding heavy series over braided flexible conduit and heavy series connectors also protect the cable lines of pressure gauges, flow meters, temperature measuring devices and control valves.

Delikon emi shielding heavy series over braided flexible conduit and heavy series connector are also widely used in protecting cables in ALUMINIUM AND NON-FERROUS METALS Scrap processing, melting, casting, rolling, drawing, finishing, processing and extrusion plants and Extrusion presses for non ferrous metals.
Over Braided Flexible Metal Conduit protecting cables and wires from damage by welding sparkles or hot chips
Overbraided Flexible Steel Conduit For High Temperature Wiring

Delikon EMI Shielding and Environmental Shielding Heavy Series Over Braided Flexible Conduit and Conduit Fittings

GALVANISED STEEL CONDUIT WITH STEEL OVERBRAIDING GALVANISED STEEL CONDUIT WITH STEEL OVERBRAIDING, This conduit utilises strip wound steel conduit as a core, which is then over-braided with steel. The wire over braid provides abrasion resistance and protects the core from mechanical damage. Braided steel conduits provide high mechanical strength yet offer high flexibility. The conduit, at full extension, offers high tensile strength without elongation thus protecting cables from being over-tensioned or stretched. It will provide an enhanced level of EMI   screening and a wide operating temperature. This conduit Resists hot swarfs.
Delikon Emi Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector offer the best wiring solutions for metallurgical process control, and metal manufacturing automation.



Over Braided Flexible Steel Conduits for heavy industry Connectors and fittings for braided flexible conduitCONNECTORS & FITTINGS FOR
BRAIDED FLEXIBLE CONDUIT
Suitable connectors
Aluminum connectors (FIXED or SWIVEL) Aluminum connectors (BLACK) Aluminum connectors (RED) Straight (US style) 90 degrees (US style) straight (metallic) 90 degrees (metallic) 45 degrees (metallic) swage fittings Stainless steel Heavy Series Stainless Steel Connector combination (internal thread) combination (set-screw)
Y Y Y Y Y Y Y Y Y Y Y Y Y
YABS, with metal clamping ring for high temperature
YABS
Connectors of all metal construction

Conduit Connectors of all metal construction, most suitable for high temperature wirings. For braided flexible metal conduit and flexible steel conduit.

For Industry Automation

Y
Heavy series flexible cable sheath water proof over braided flexible steel conduit offers optimum cable protection. Heavy series flexible cable sheath
water proof over braided flexible steel conduit
offers optimum cable protection in industry applications for protection against HOT metal sparks, slag, etc..
Over BRAIDED FLEXIBLE LIQUID TIGHT CONDUIT for cable management and protection of critical wiring in Mining, Oil and Gas, Ship Building, steel mill, Beverage and Machine Tools Industry
